Achieving consistent results when 3D printing with conductive filament presents unique challenges compared to standard PLA. However, mastering these materials opens the door to printing functional electronic housings, sensors, and electrostatic discharge (ESD) fixtures right from your desktop.

Close up macro shot of a brass 3D printer nozzle laying down black conductive filament with visible layer lines

Many engineers struggle initially with nozzle clogs or inconsistent resistance readings. Therefore, we have compiled the essential settings and techniques you need to succeed. By adjusting a few key parameters, you can ensure your parts perform exactly as specified in our Technical Data Sheets.

1. Upgrade to a Hardened Steel Nozzle

Most conductive materials, including our Carbon Nanotube (CNT) enhanced polymers, are abrasive. Consequently, printing with a standard brass nozzle will lead to rapid wear. As the nozzle diameter widens, your extrusion becomes inconsistent.

Specifically, we recommend using a hardened steel or ruby-tipped nozzle. Additionally, consider using a slightly larger diameter (0.6mm). This reduces back-pressure and prevents clogs, ensuring a smooth flow of material throughout long prints.

2. Slow Down Your Print Speed

Speed is the enemy of conductivity. When 3D printing with conductive filament, you are not just trying to melt plastic; you are trying to align conductive particles. In fact, printing too fast can disrupt the “percolation network” of the carbon nanotubes, leading to higher electrical resistance.

For best results, reduce your print speed to 30–40 mm/s. Furthermore, slowing down improves layer adhesion. This is critical because poor layer bonding creates gaps that stop electricity from flowing through the Z-axis of your part.

3. Optimize Layer Height and Width

To maximize conductivity, you want to “squish” the layers together as much as possible. Therefore, we recommend specific slicer settings to increase density:

  • Layer Height: Keep it between 0.2mm and 0.3mm. Thinner layers mean more interfaces for electricity to cross.
  • Extrusion Width: Set this slightly wider than your nozzle (e.g., 0.45mm for a 0.4mm nozzle).

Ultimately, this compression forces the carbon nanotubes into closer contact. This significantly lowers the Volume Resistivity of the final component.

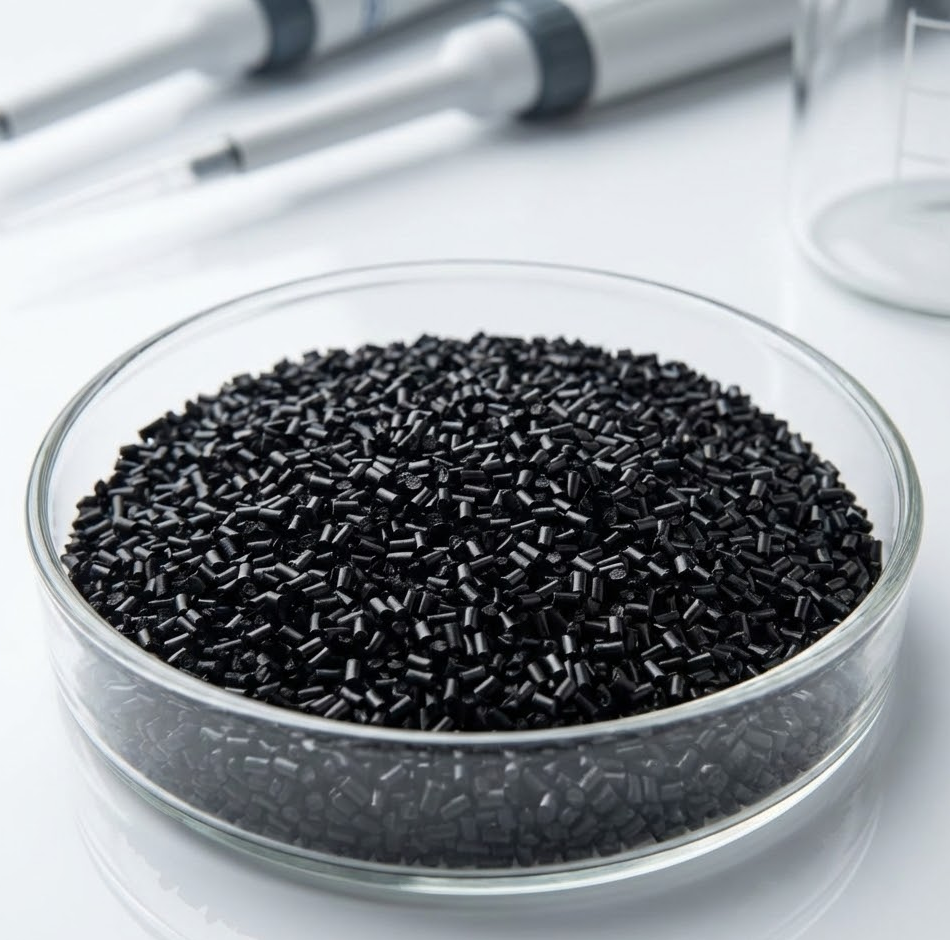

Macro shot of black conductive polymer pellets in a glass petri dish for filament manufacturing

4. Manage Bed Adhesion and Temperature

Conductive fillers can alter the thermal shrinkage of the base polymer. As a result, warping can occur if the print bed is not properly prepared. For our conductive PLA and PETG, a heated bed set to 60°C is ideal.

Moreover, using a PEI sheet or a standard glue stick helps lock the first layer down. A stable foundation ensures dimensional accuracy, which is vital for snap-fit electronic enclosures.

5. Post-Processing and Validation

Once the print is complete, validation is key. We recommend using a multimeter or mega-ohmmeter to verify the surface resistance. However, remember that probe pressure matters. Pressing probes firmly into the part ensures you are measuring the material, not just the contact resistance.

In conclusion, 3D printing with conductive filament does not have to be difficult. By controlling your speed, temperature, and nozzle hardware, you can produce industrial-grade ESD parts with confidence.
